Collateral Ligament Tears

Posted bysteepforestfarmPosted inFarrier Services

Case 1: Lateral Collateral Ligament support shoe

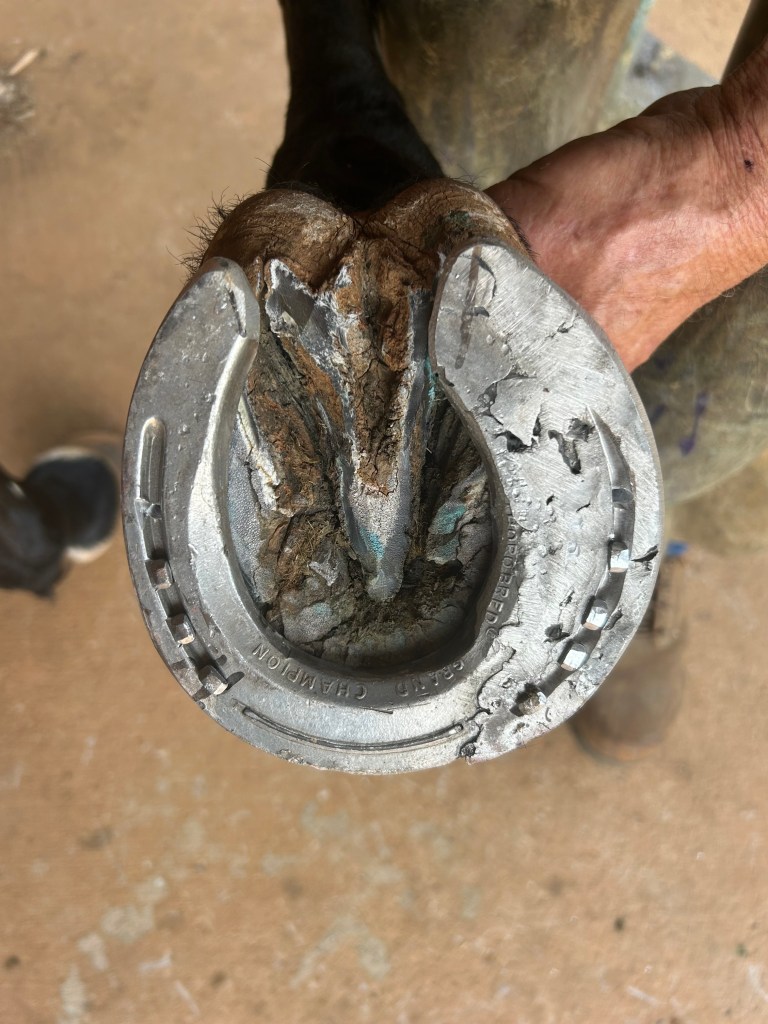

lateral collateral ligament support shoe

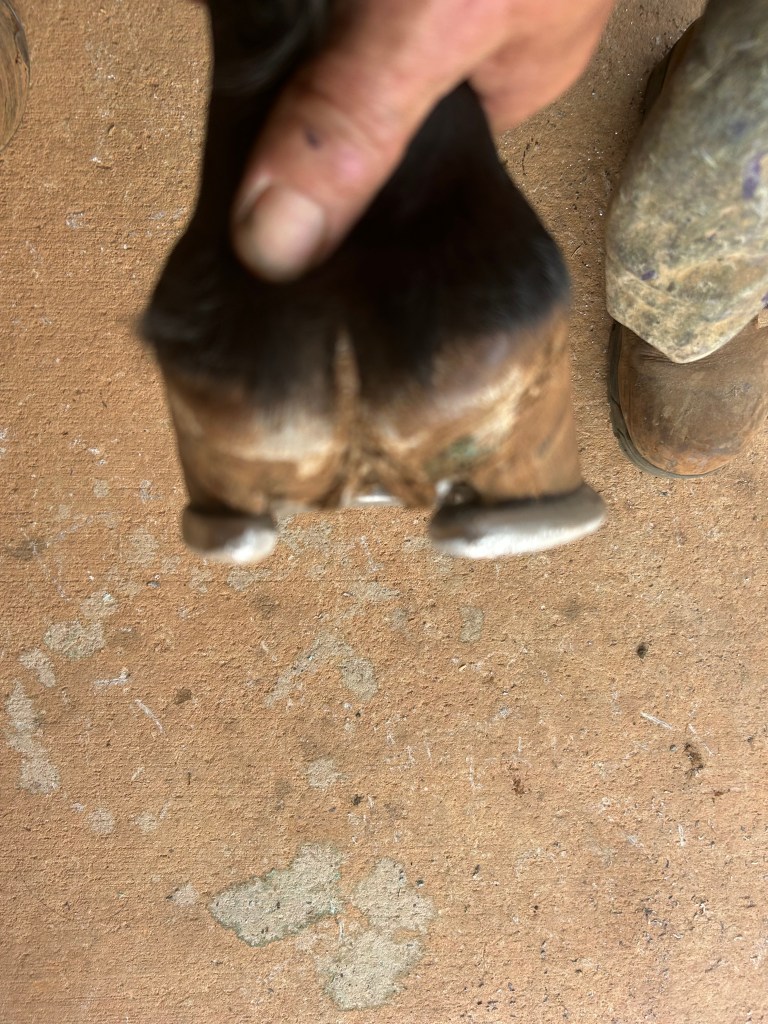

Showing the full fit to the lateral branch.

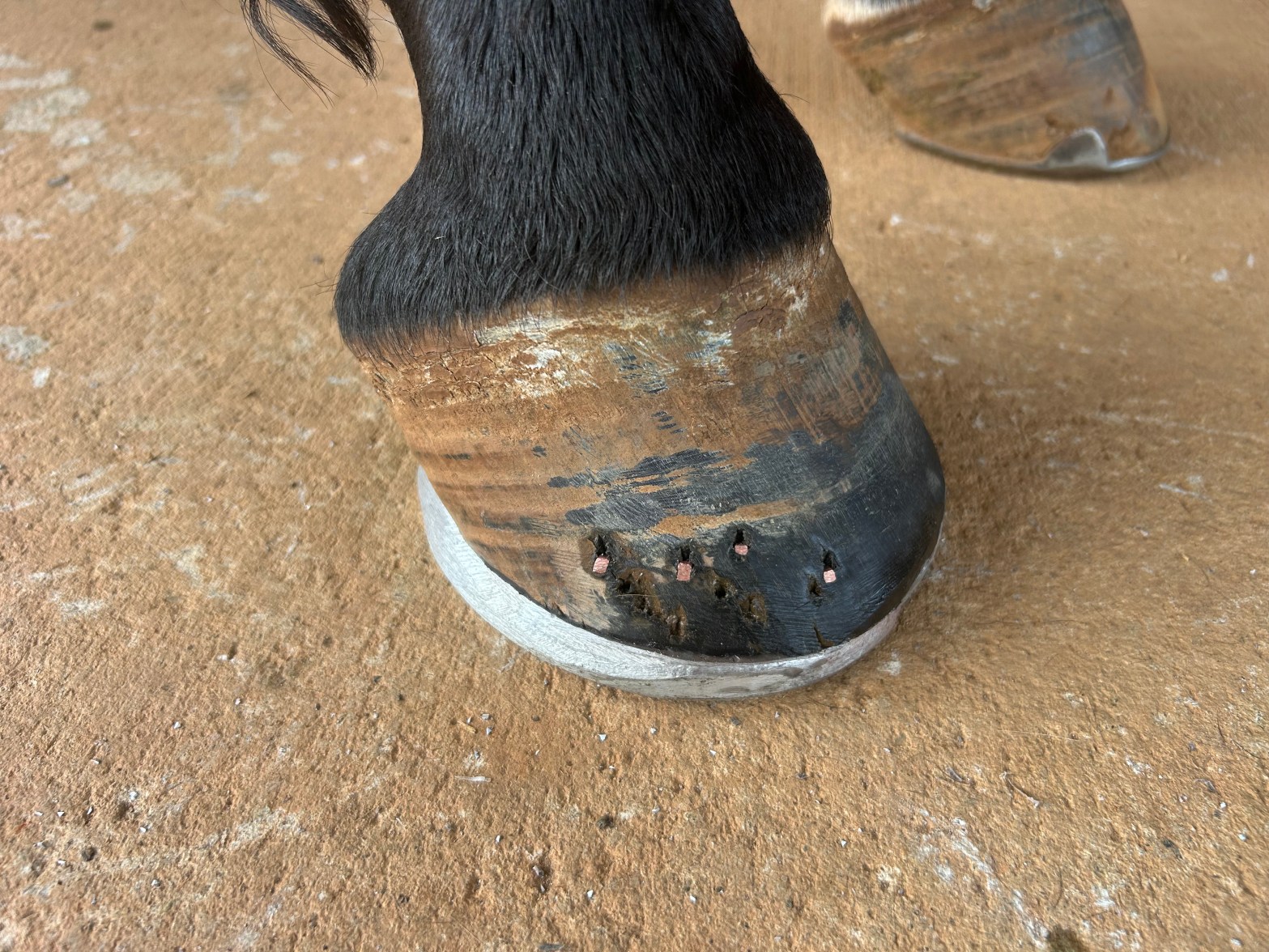

The lateral side can be fit a lot fuller with an aluminum shoe, as you can box the edge more fully.

Case 2: Medial Collateral Ligament Tear

Medial aspect deficiency has probably contributed to the condition and renders the prescription for a collateral ligament shoe ineffectual. To give medial support the hoof must be medially expanded. This is done with glue and fiberglass.

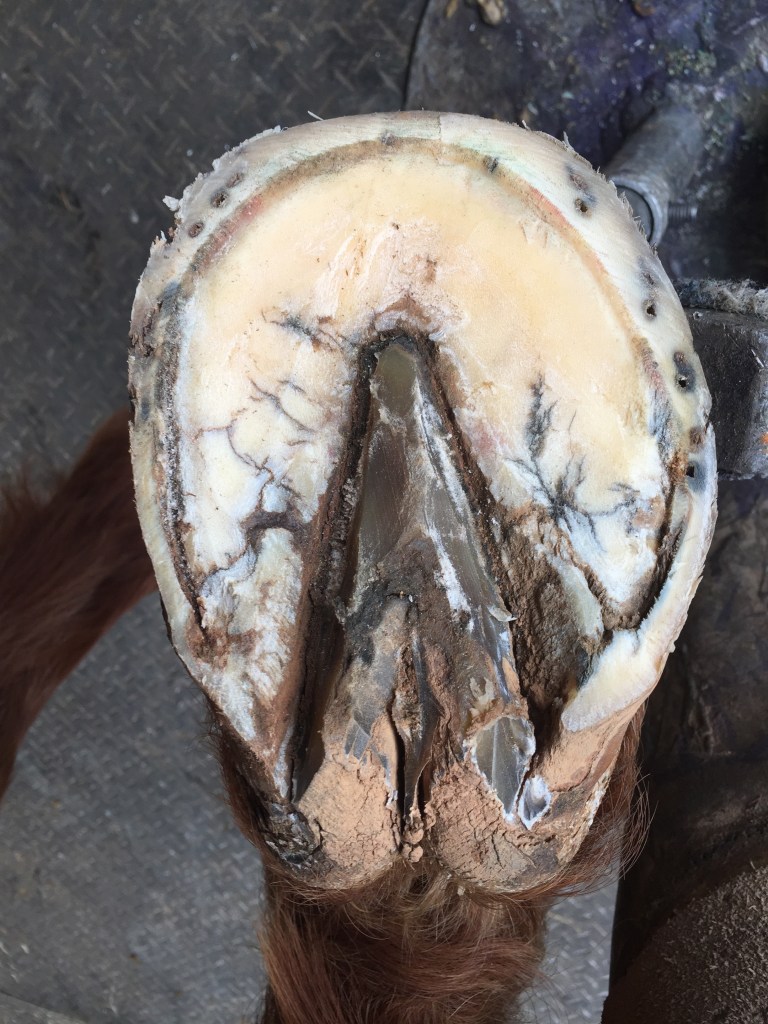

Medial collateral ligament tear with an underrun medial hoof capsule and low heel.

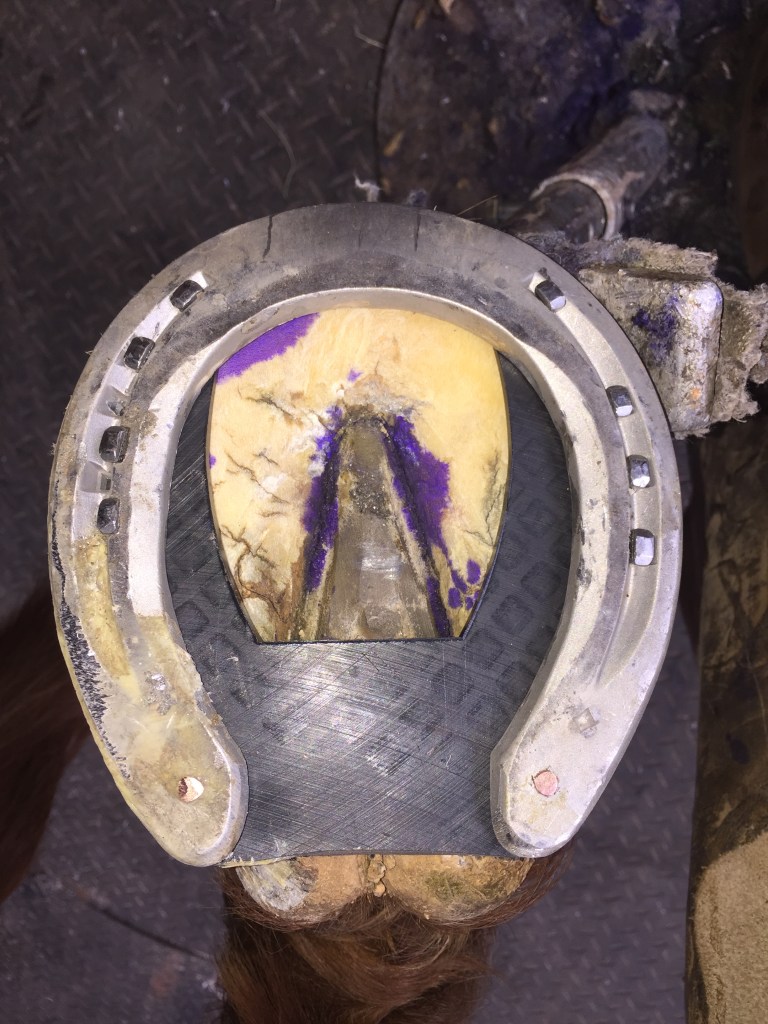

Note the medial area to be filled w/ artificial hoof wall, Rim Bar wedge to also raise hoof angle as well

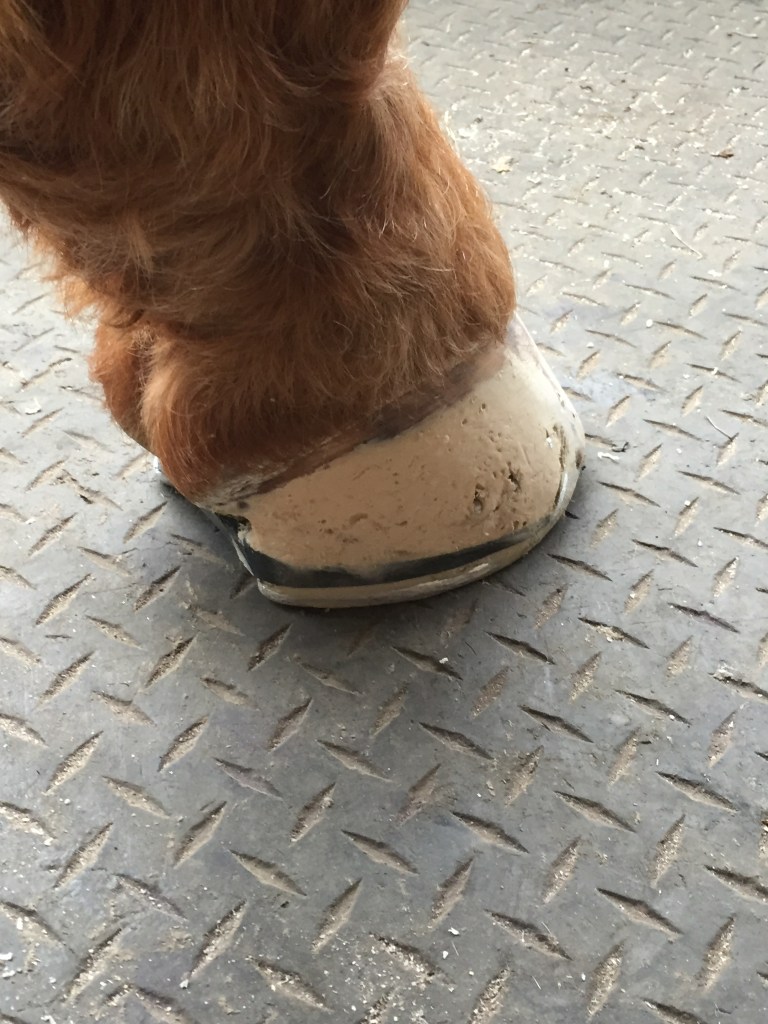

Glue goes up to just below the hairline to make an artificial medial hoof wall.

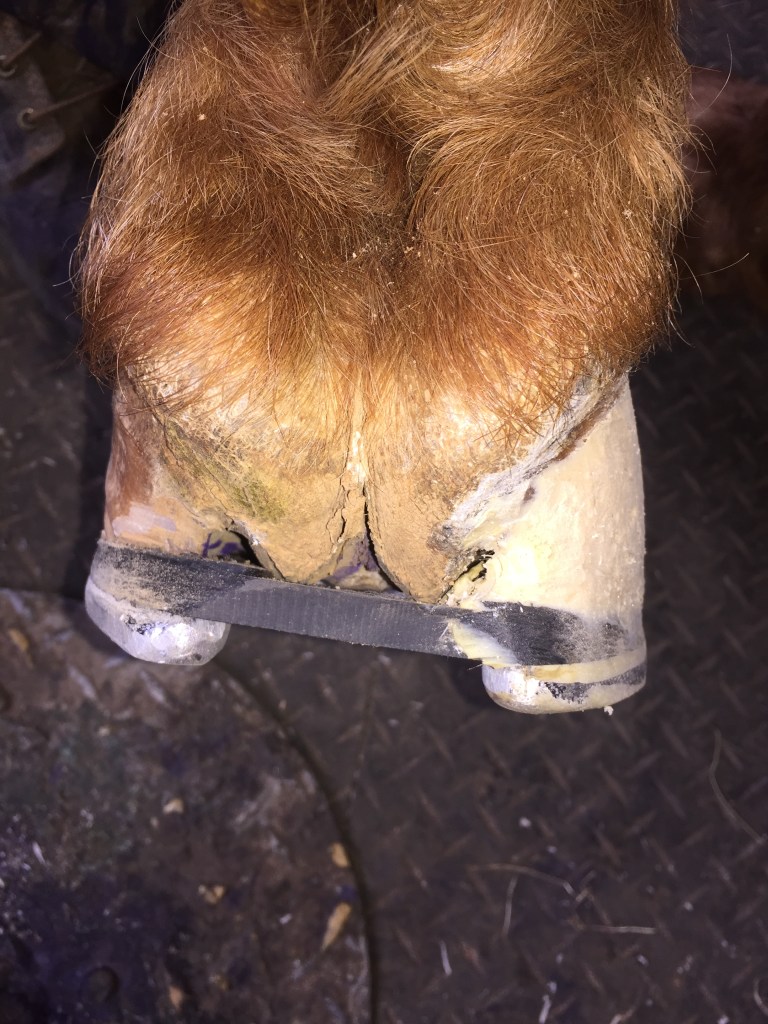

Note that the hoof capsule is now wider at the base than at the coronary band, it was the opposite before
Compare to first photo– the hoof capsule is equal distance across medial to lateral. The medial side is deeper punched so nails can penetrate into hoof wall.
