Hoof Trauma

Posted bydanielle573dafc9a4Posted inFarrier Services

Case 1: Hoof Caught in Cattlegaurd

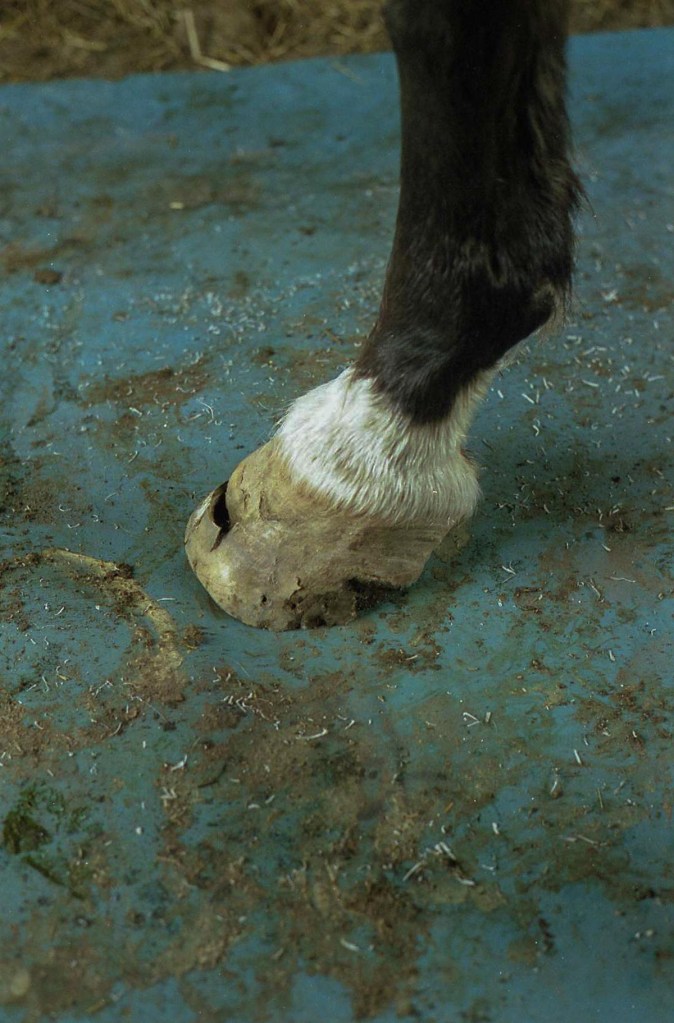

Horse was caught in a cattlegaurd, both front feet

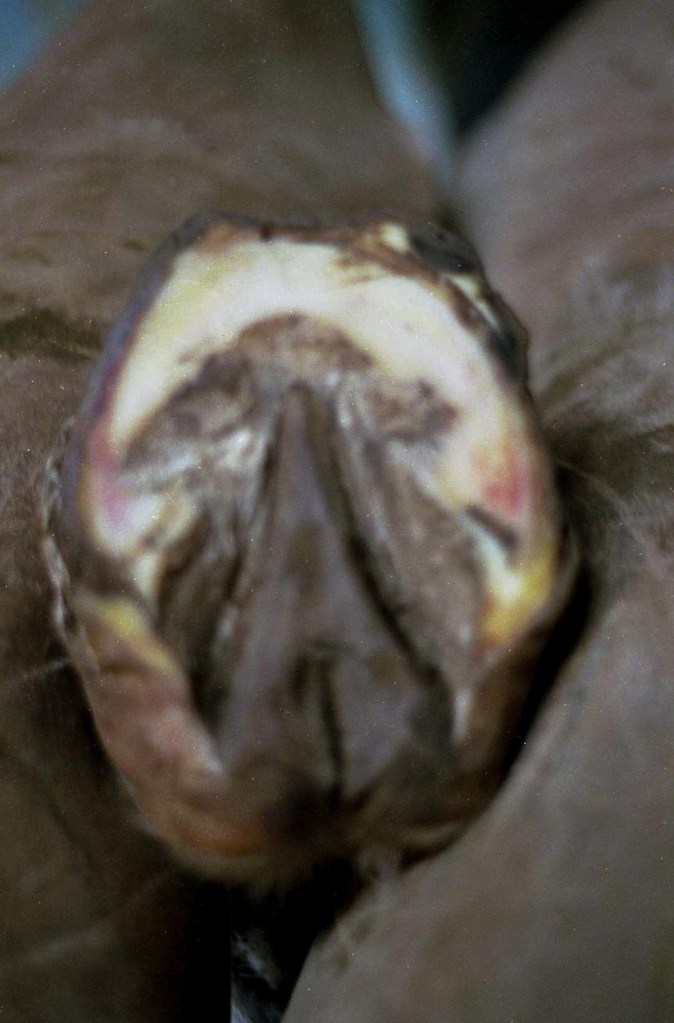

Severe bruising of the sole, multiple abscesses in the hoof wall

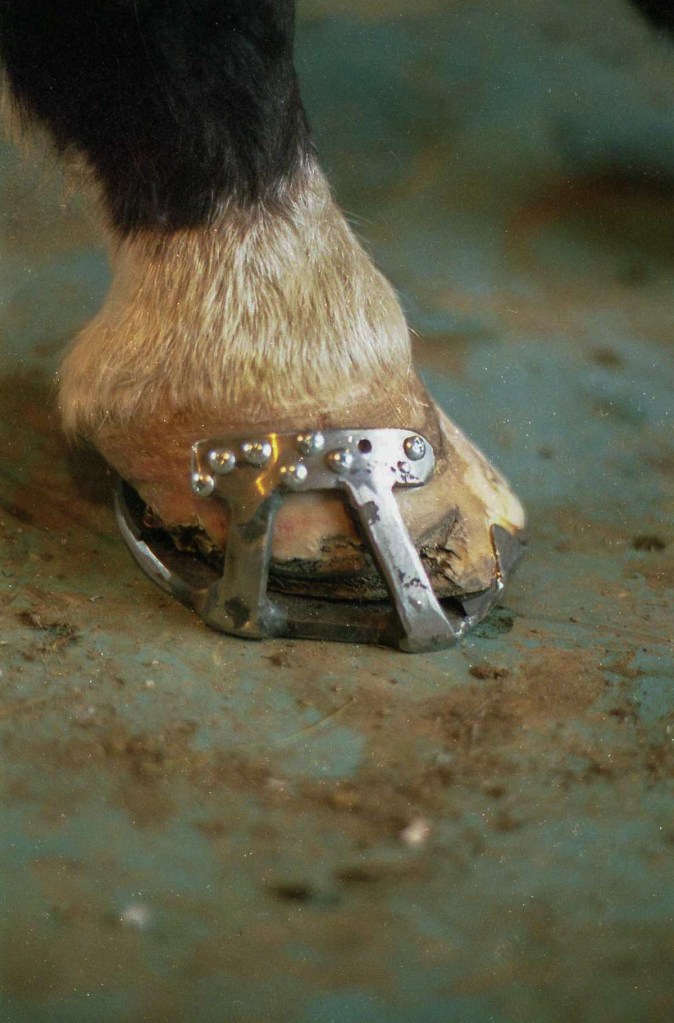

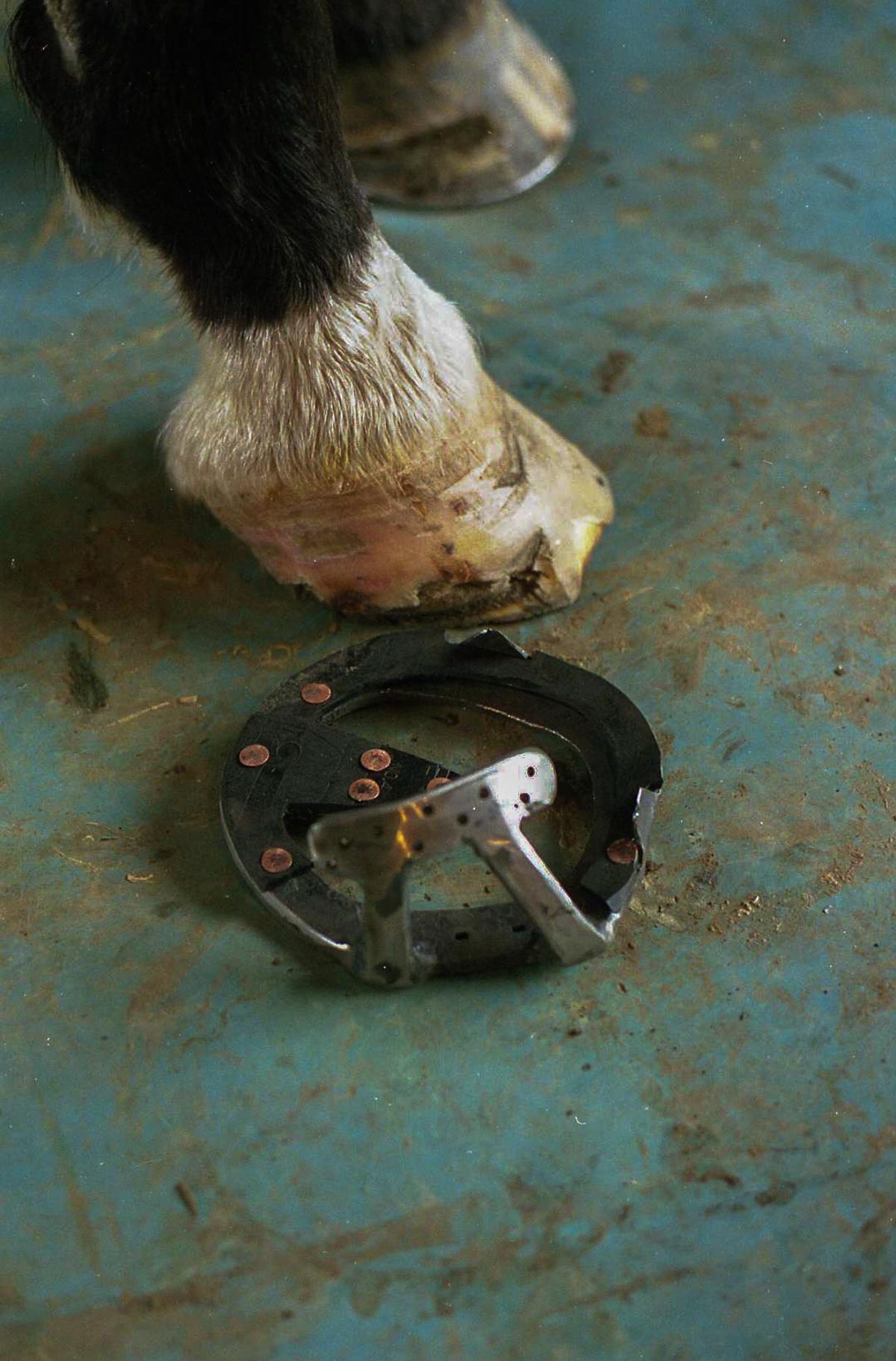

Goose bar heart bar shoe w/ 3/4 rim pad

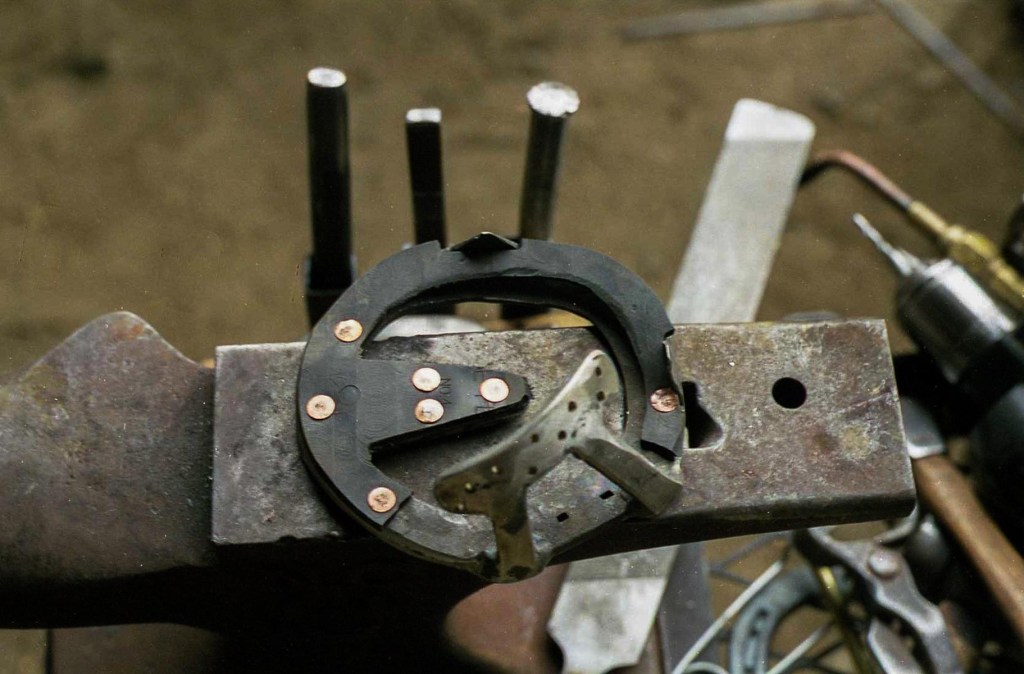

Goose bar was copied from a copper template as the hoof is an oblique cone shape
Thank goodness enough hoof wall thickness for screws!
Bottom view, only 3 medial nails. Screws on lateral quarter. After a reset and adequate hoof growth, horse returned to normal shoes and then to being barefoot.

Case 2

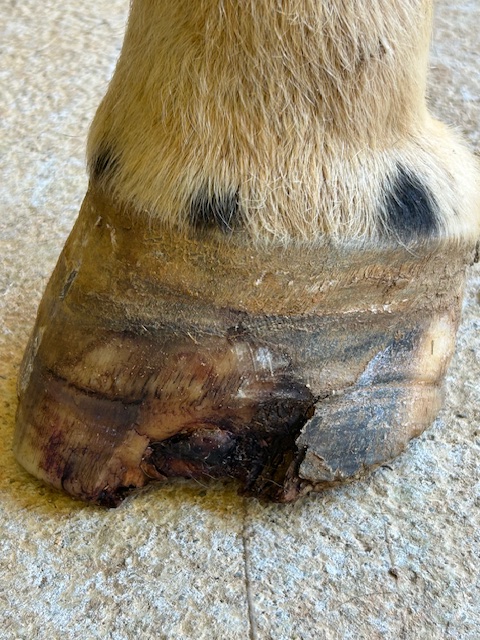

Lateral view: severe tearing of hoof wall and sensitive laminae with drainage

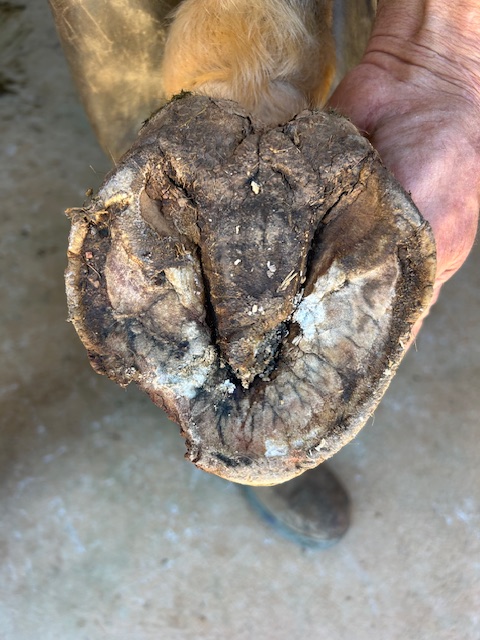

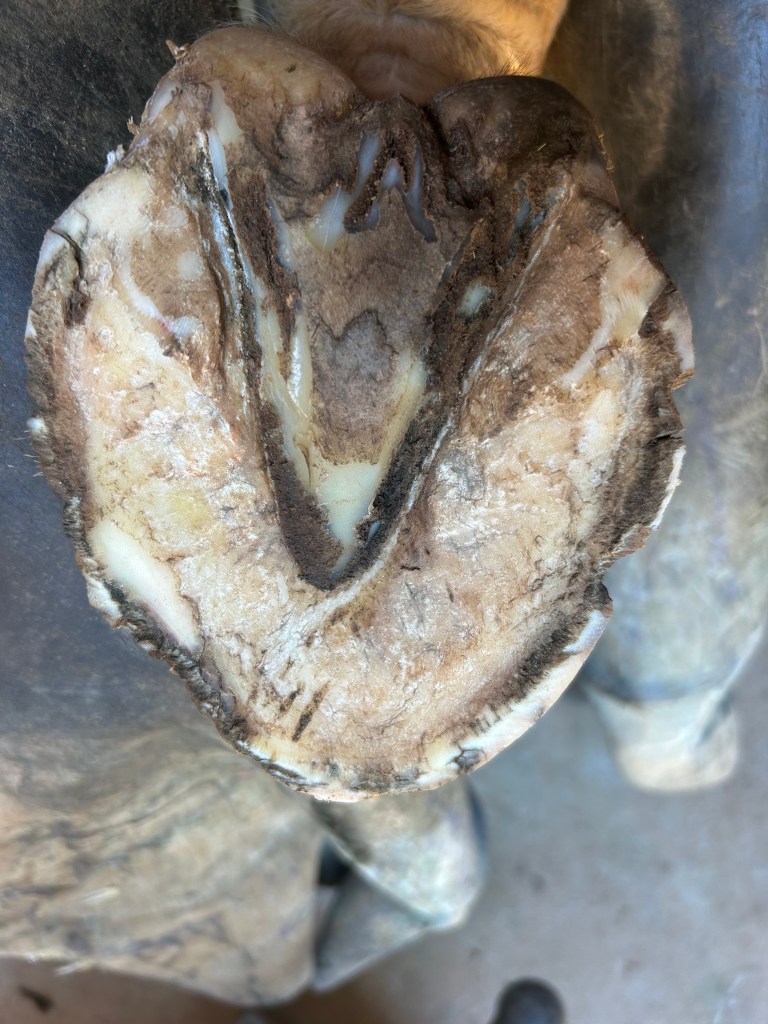

Bottom view

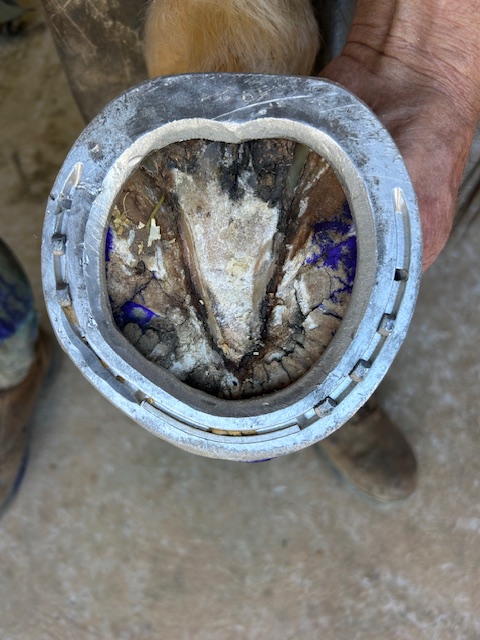

Aluminum bar shoe
Packed with Biozide gel (an iodine based wound dressing), gauze lightly packed over to hold in medication and padding

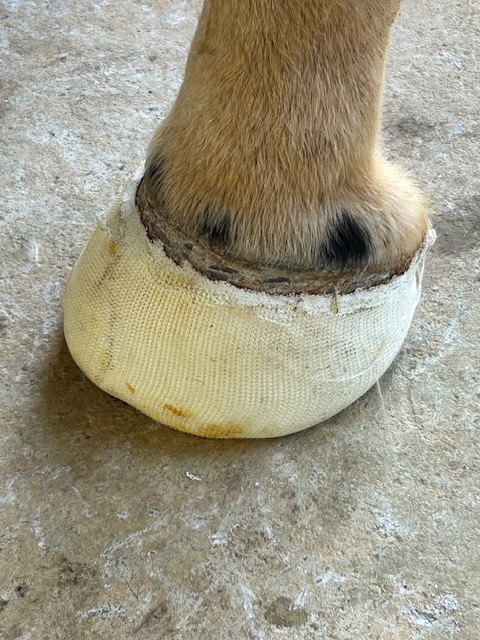

Fiberglass cast over the hoof– important that the cast does not affect or put pressure on the coronet band or the wound — this cast allows horse to be turned out while wound heals. This is an effective bandage for horses that need turnout or are fractious to work on.

Case 2, next shoeing:

Bottom view of hoof capsule being prepped for a glue on shoe

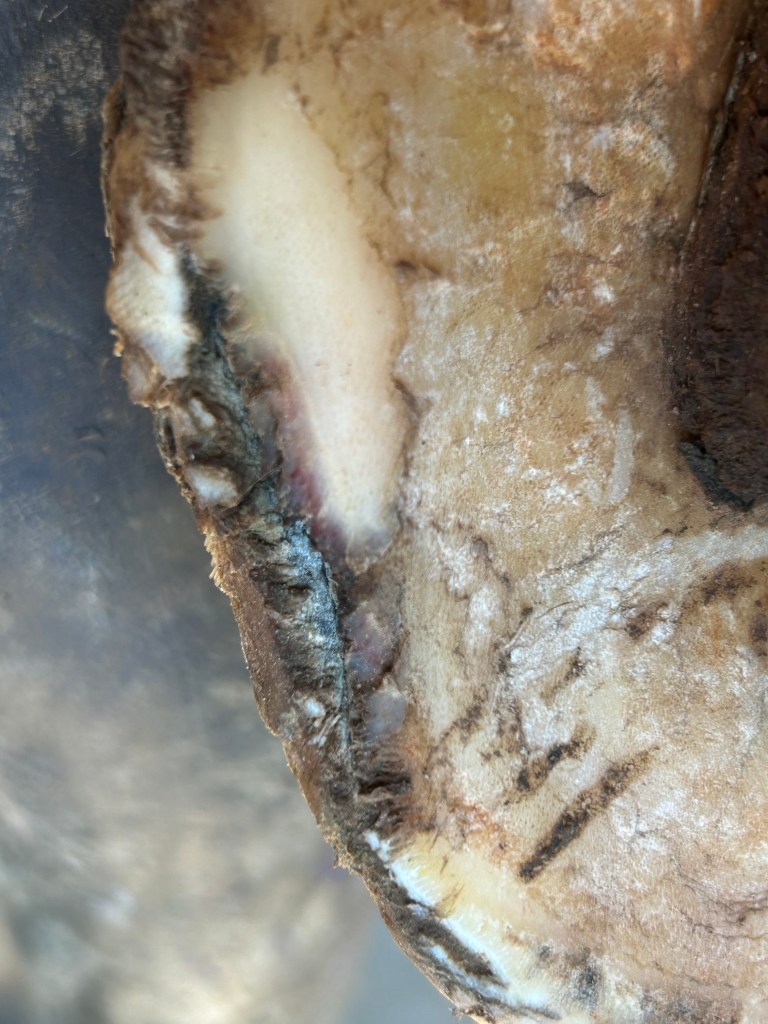

Showing the affected area which will be packed with medicated wax
Medicated wax now added

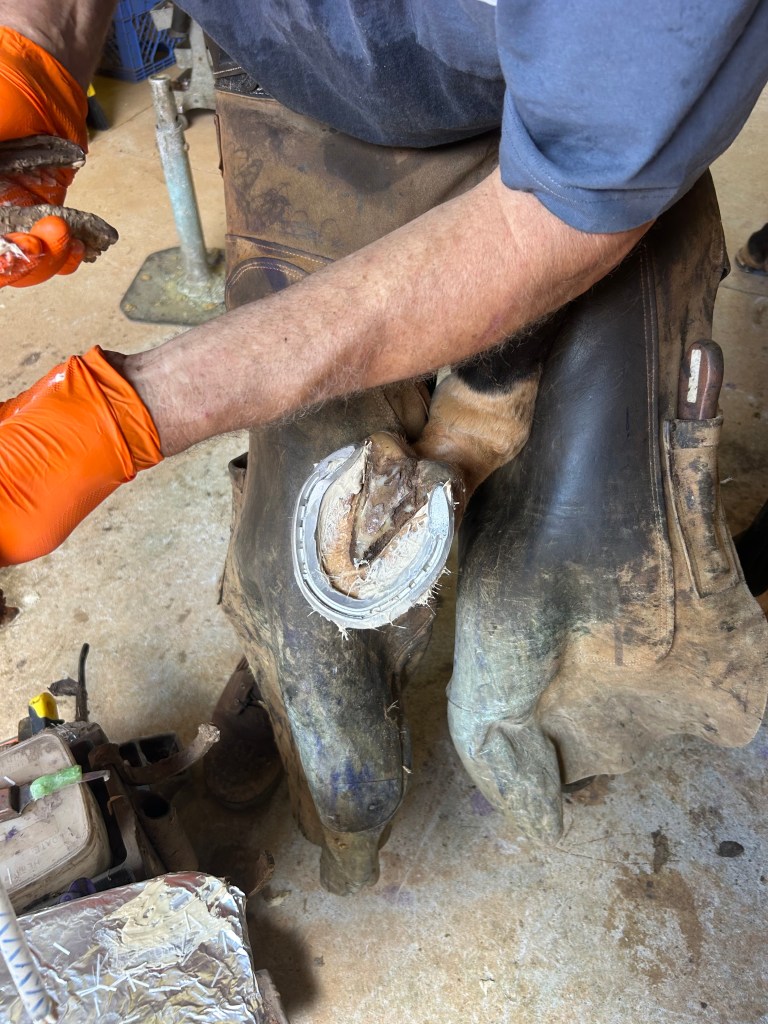

Glueing the shoe on

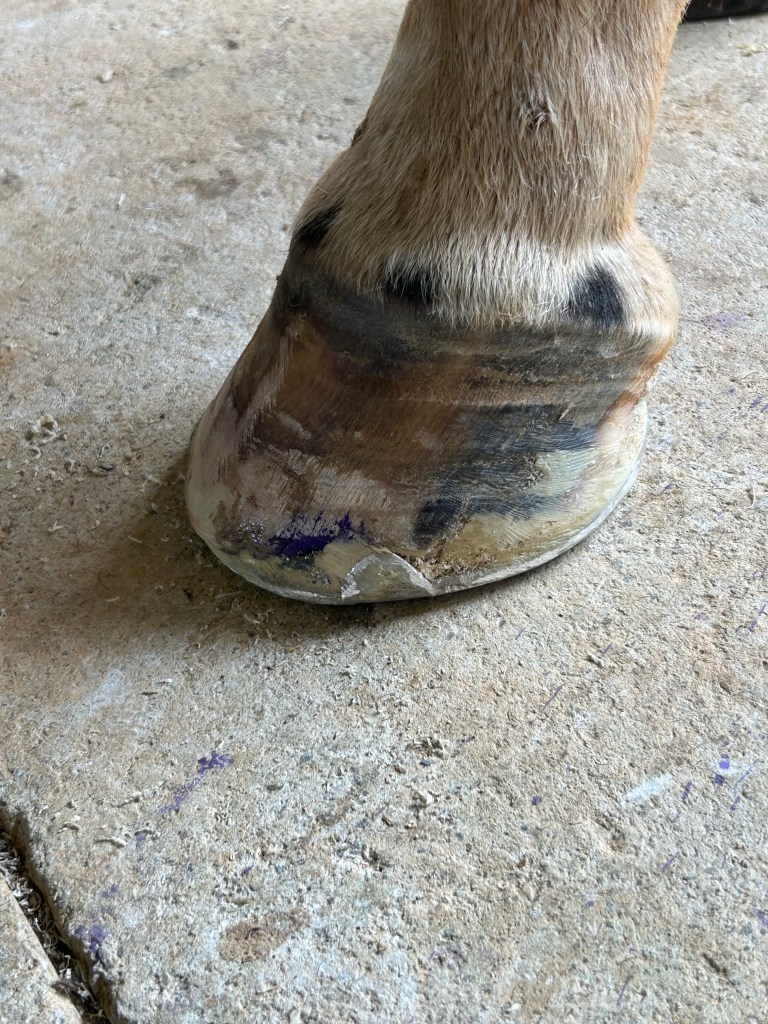

Side view, wax goes up the hoof wall prior to glueing

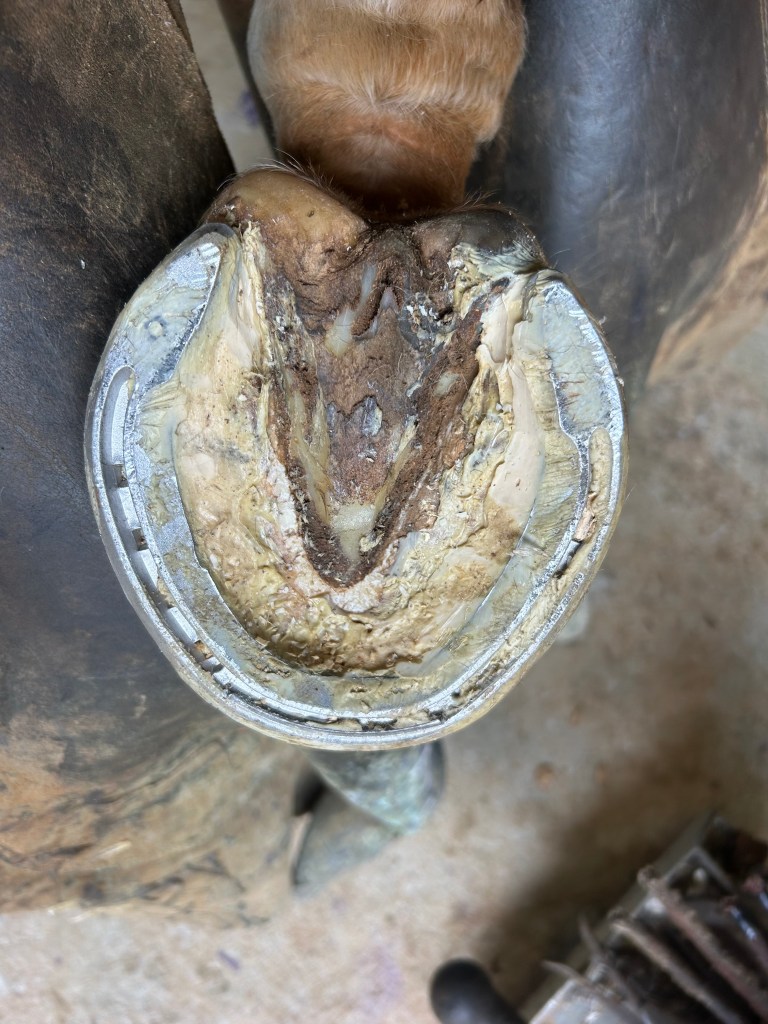

Bottom view, glue on shoe
